SDLG Excavator

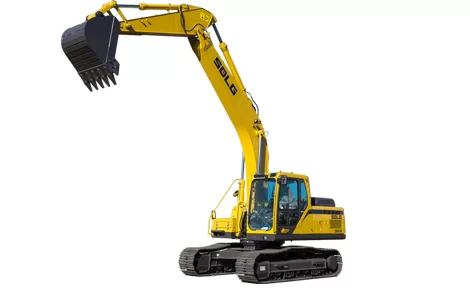

SDLG E6210F Excavator
E6210F is the core product developed by SDLG after fully investigating the Chinese market. The product has high strength chassis, heavy working device, optimized matching power hydraulic system, suitable for a variety of harsh conditions.
Additional INformation
- The SD60B engine has the advantages of environmental protection, low-speed engine, high efficiency, low fuel consumption and high efficiency.
- Double pump constant power negative flow hydraulic system, automatic sensing control.
- The reinforced lower frame with lengthened crawler and widened chassis has good trafficability and higher operation stability.
- Equipped with EECU, VECU, IECU, keypad and GPS electronic control system.
- The cab is spacious and has good sound insulation effect. It is equipped with three sunshade nets. Silicone oil rubber shock absorber is used to reduce vibration and impact.
- It can be equipped with various working devices and accessories such as crushing hammer.
|
Parameters |
|
|---|---|
|
Operating weight (kg): 21250 |
Bucket capacity (m³): 0.9 |
|
Rated power (kW): 123 |
Overall width (mm): 2800 |
|
Overall height (mm): 2940 |
Overall length (mm): 9700 |
|
Engine model: BF6M2012 |
Emission Standard: China Phase III |
|
Max. excavation force (kN): 147.1 |
Swing speed (r/min): 12.1 |
|
Traveling speed (km/h): 3.5/5.7 |
Max. digging radius (mm): 9940 |
|
Max. digging depth (mm): 6730 |
Max. digging height (mm): 9450 |
|
Fuel tank capacity (L): 350 |
